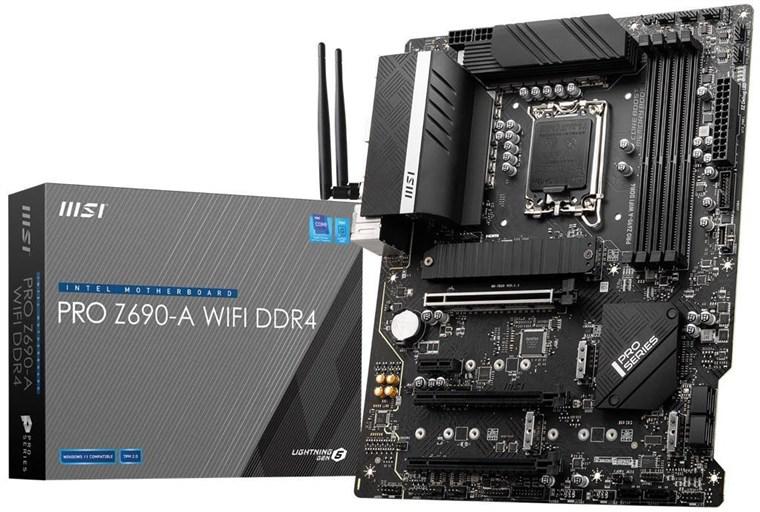

MSI Z690-A WIFI DDR4 & Bluetooth: 2x USB3.2 Gen1, 1x USB3.2 Gen2, 1x USB3.2 Gen2x2 Type-C, 4x USB2.0
| Socket: |
Intel 1700 - 12th Gen Pentium/i3/i5/i7/i9 |
| Chipset: |
Intel Z690 |
| Memory slots: |
4x dual-channel DDR4 2133-5200MHz, 128GB Maximum |
| Storage: |
3x M.2 Socket 3 type 2260/2280 PCI-E 4.0, 1x M.2 Socket 3 type 2260/2280 PCI-E 3.0, 6x SATA 6Gb/s ports (Support Raid 0, 1, 5, 10) |
| Networking: |
Intel 2.5GB LAN, Intel WIFI 6 a/b/g/n/ac/ax 2.4Gbps adapter + Bluetooth 5.2 |
| Rear Ports: |
1x DisplayPort, 1x HDMI, 1x LAN, 1x PS/2 Combo, 1x USB3.2 Gen2x2 Type-C, 1x USB3.2 Gen2, 2x USB3.2 Gen1, 4x USB2.0, 6x Audio jacks, 2x WIFI Antenna connectors |
| Internal Ports: |
2x USB3.2 Gen1, 1x USB3.2 Gen2 Type-C, 2x USB2.0 connectors, 4x M.2 Socket 3 type 2260/2280, 6x SATA 6Gb/s, 1x CPU Fan (4-pin), 1x Water Pump Fan (4-pin), 6x Chassis Fan (4-pin), 1x Thunderbolt Header, 1x 24-pin EATX Power, 2x 8-pin ATX 12V Power, 1x Front panel audio, 2x System panel, 1x Clear CMOS, 1x 4-pin RGB Headers, 2x 3-pin ARGB Header, 1x TPM Header |
| Expansion slots: |
1x PCIe 5.0 x16, 1x PCIe 3.0 x16 (max at x4 mode), 1x PCIe 3.0 x16 (max at x1 mode), 1x PCIe 3.0 x1 |
